Load a model into vLLM from MatrixHub

Goal​

Load a model into vLLM from MatrixHub and run a simple inference request.

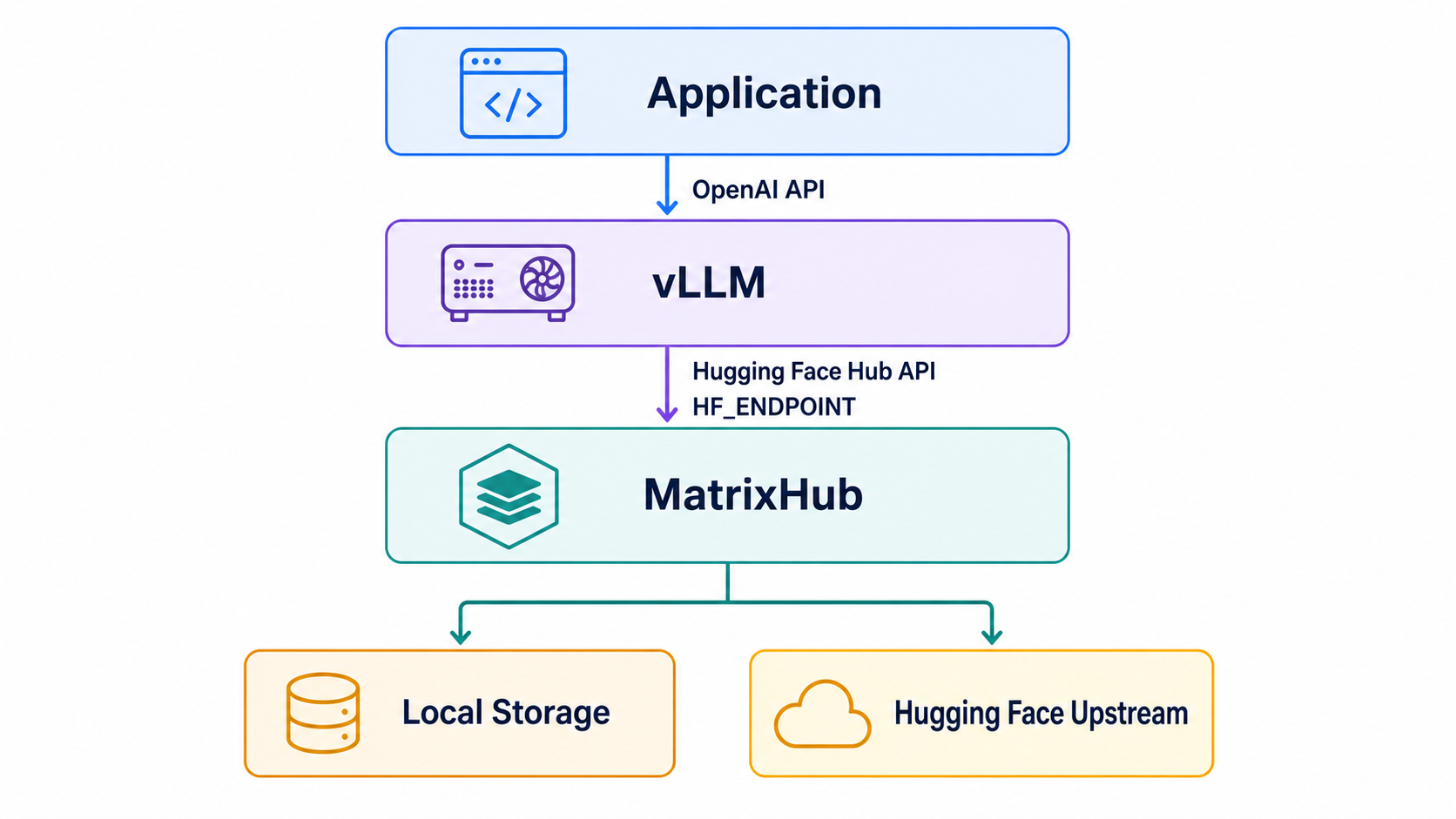

Architecture​

vLLM loads models from MatrixHub

Prerequisites​

  • MatrixHub is deployed and the model is cached. This guide uses http://192.0.2.10:30001 as the example MatrixHub address.
  • A GPU that meets the model requirements is available.
  • The vLLM node and MatrixHub are on the same internal network.

Deploy vLLM​

Option 1: Deploy vLLM in a container with nerdctl or docker​

The following example deploys vLLM with nerdctl and enters the container.

nerdctl stop qwen 2>/dev/null || true
nerdctl rm qwen 2>/dev/null || true
nerdctl run -d \
  --gpus device=0 \
  --shm-size 8G \
  --network host \
  --name qwen \
  --entrypoint sleep \
  docker.m.daocloud.io/vllm/vllm-openai:v0.18.0 \
  infinity

nerdctl exec -it qwen -- sh

Option 2: Deploy vLLM on Kubernetes​

Example deployment YAML:

kubectl apply -f - <<EOF
kind: Deployment
apiVersion: apps/v1
metadata:
  name: vllm-server
  labels:
    app: vllm
spec:
  replicas: 1
  selector:
    matchLabels:
      app: vllm
  template:
    metadata:
      labels:
        app: vllm
    spec:
      volumes:
        - name: shm
          emptyDir:
            medium: Memory
            sizeLimit: 2Gi
      containers:
        - name: vllm
          image: docker.m.daocloud.io/vllm/vllm-openai:v0.18.0
          command:
            - sleep
          args:
            - infinity
          ports:
            - containerPort: 8000
              protocol: TCP
          resources:
            limits:
              memory: 64G
              nvidia.com/gpu: '1'
            requests:
              memory: 6G
              nvidia.com/gpu: '1'
          volumeMounts:
            - name: shm
              mountPath: /dev/shm
EOF

Enter the container.

kubectl exec -it deploy/vllm-server -- sh

Option 3: Deploy vLLM in a Python environment​

Start vLLM and load the model through MatrixHub​

Enter the vLLM runtime, set HF_ENDPOINT to the internal MatrixHub address, and start vLLM.

export HF_ENDPOINT="http://192.0.2.10:30001"
vllm serve Qwen/Qwen3-0.6B --max-model-len 1024

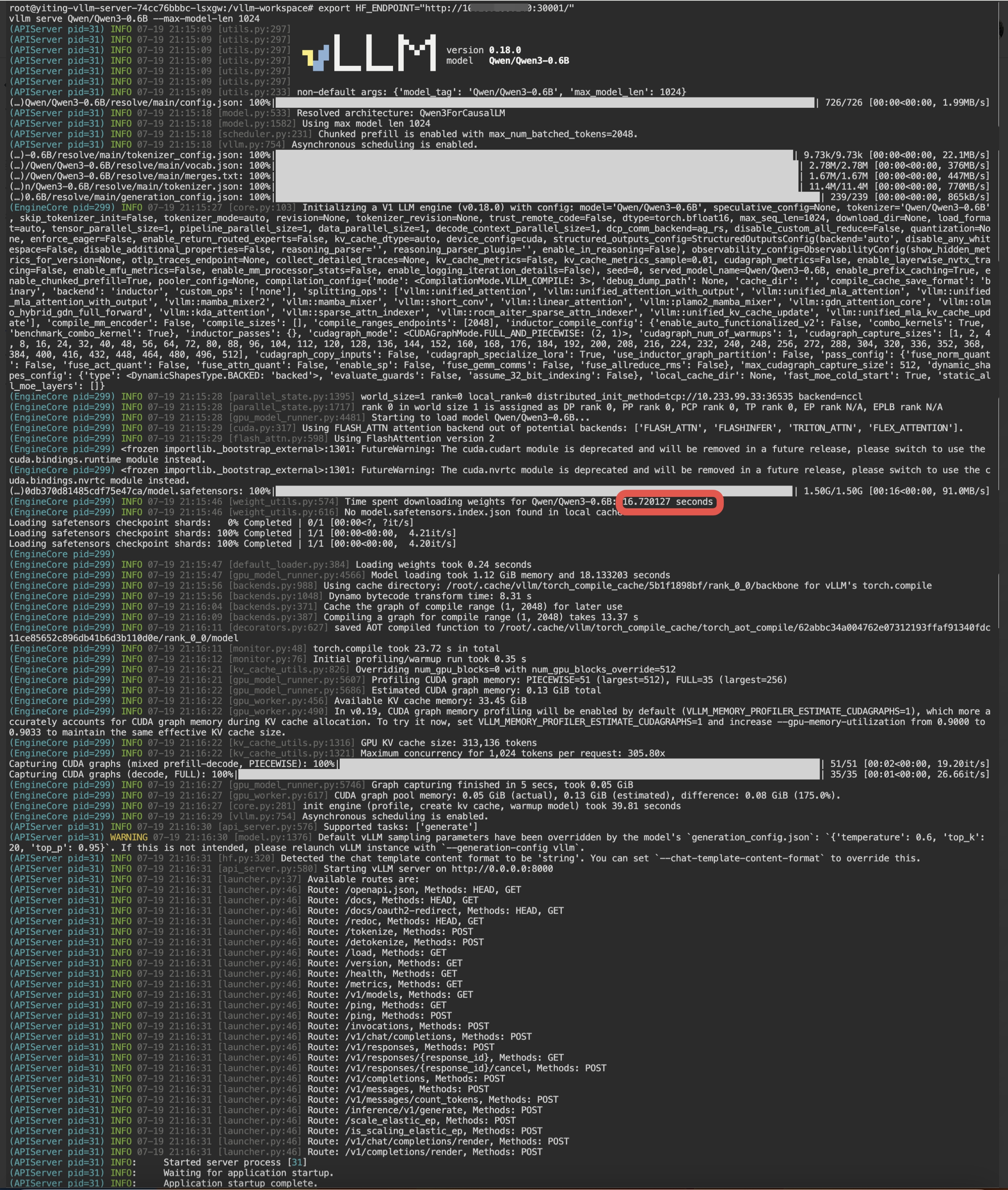

vLLM downloads and loads Qwen/Qwen3-0.6B through MatrixHub

The log shows that vLLM downloaded Qwen/Qwen3-0.6B through MatrixHub and loaded it successfully. The model weights were approximately 1.5 G. At an internal network speed of 91 M/s, the download took approximately 16 seconds.

Send a request to the model deployed with vLLM​

Open another terminal, enter the vLLM runtime, and call the API.

curl "http://localhost:8000/v1/completions" \
  -H "Content-Type: application/json" \
  -d '{
        "model": "Qwen/Qwen3-0.6B",
        "prompt": "San Francisco is a",
        "max_tokens": 20
      }'

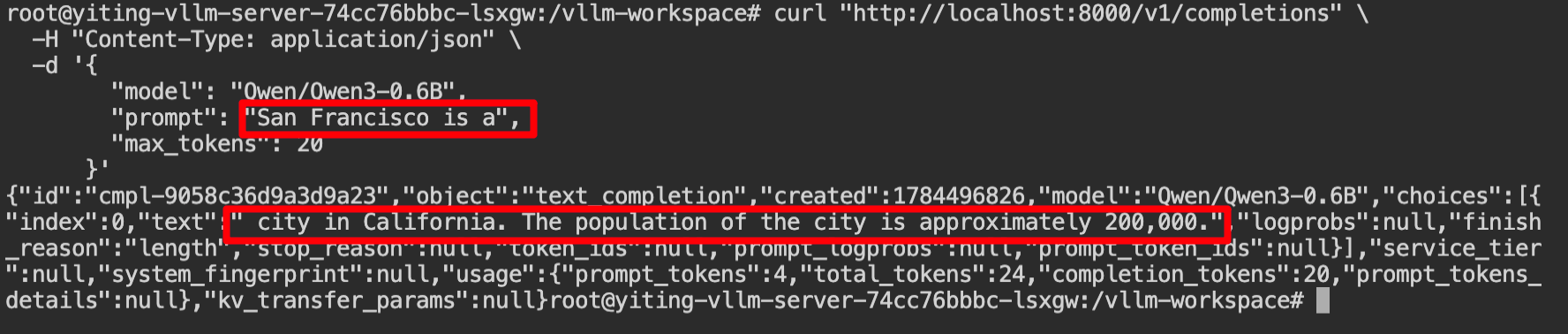

The model returns a response.

vLLM model response

Summary​

Set HF_ENDPOINT to connect vLLM to MatrixHub and download models over the internal network. Download time depends on the internal network speed.
